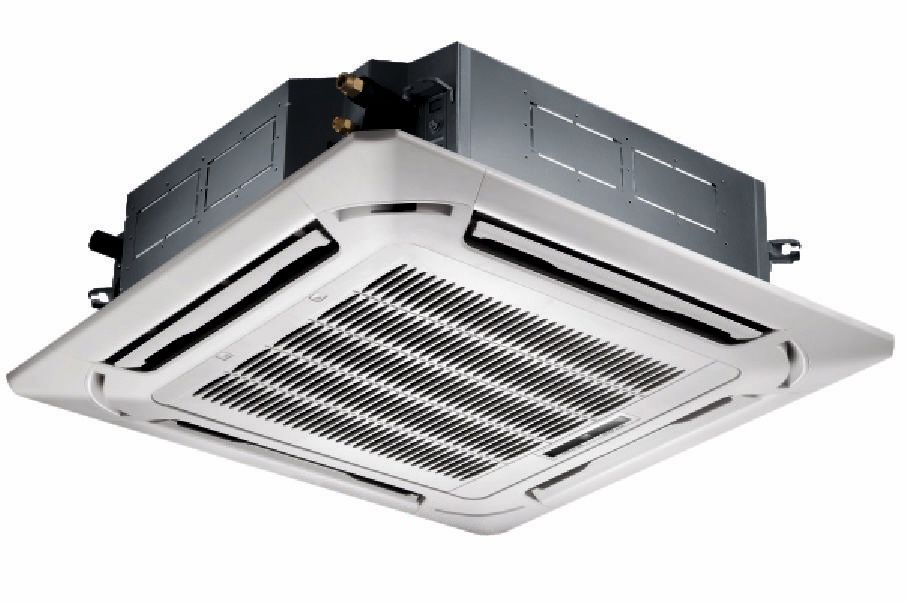

Seria M Slim
- Eficienta energetica ridicata A++/A+ ( SEER: 6,6 , SCOP 4,1) aduce beneficii economice importante in functionarea de lunga durata a aparatului
- Rezistenta electrica auxiliara adaugata la interiorul unitatii exterioare ( pe carcasa) imbunatateste capacitatea de incalzire a aparatului, in conditii de eficienta energetica ridicata.
- Pompa de condens incorporata, asigura eliminarea apei provenita din condensare, in conditiile speciale de montaj, cerute de aparatele tip caseta.
- Dimensiuni speciale, pentru incadrarea in plafonul casetat.
Tabel cu specificatii tehnice
| Model unitate interioara | CAS(M)I-24MF32Z | CAS(M)I-36MF32Z | CAS(M)I-42MF32Z | CAS(M)I-60MF32Z | ||
|---|---|---|---|---|---|---|
| Model unitate exterioara | U(M)E-24MF32Z | U(M)E-36MF32Z | U(M)E-42MF32Z | U(M)E-60MF32Z | ||
| Tip | DC inverter | |||||
| Control | Telecomanda infrarosu | |||||
| Capacitate | BTU/h | 24000 ( 7600 – 28000) | 36000 (9000-39000 ) | 41000 (10000-42000) | 53000 ( 14000-57000 ) | |
| Capacitate | kW | 7.03 ( 2.23-8.21 ) | 10.52 (2.64- 12.02) | 12.02 (2.93 - 12.31) | 15.24 (4.1-16.71) | |
| SEER | Racire | W/W | 6.2 | 6.7 | 6.1 | 6.3 |
| Clasa de eficienta energetica | A++ | A++ | A++ | A++ | ||
| Pdesignc | kW | 7.0 | 10.5 | 12.1 | 15.3 | |
| Capacitate | 26000 ( 8300- 29500) | 38000 (10000 - 45000) | 46000 (11500 - 48000) | 62000 (15000 - 66000) | ||
| Capacitate | kW | 7.62 (2.43-8.65) | 11.14 ( 2.93 - 13.19 ) | 13.48 (3.37-14.07) | 18.1 (4,4 - 19.34) | |
| SCOP | Incalzire | W/W | 4.0 | 4.0 | 4.0 | 4 |
| Clasa de eficienta energetica | A+ | A+ | A+ | A+ | ||
| Pdesignh | kW | 6.0 | 8.5 | 9.5 | 11.9 | |
| Tol | ℃ | -15 | -15 | -15 | -15 | |
| Alimentare ( Unitate Interioara) | V- Ph-Hz | 220-240V,1Ph,50Hz | 220-240V,1Ph,50Hz | 220-240V,1Ph,50Hz | 220-240V,1Ph,50Hz | |
| Alimentare ( Unitate Exterioara) | V- Ph-Hz | 220-240V,1Ph,50Hz | 220-240V,1Ph,50Hz | 220-240V,1Ph,50Hz | 380-415V,3Ph,50Hz | |
| Consum Maxim | W | 2950 | 5000 | 5000 | 7500 | |
| Curent Maxim | A | 13.5 | 22.5 | 22.5 | 14.0 | |
| Voum aer interior (Hi/Med/Lo) | m3/h | 1378/1200/1032 | 1700/1550/1380 | 1900/1750/1600 | 2000/1850/1650 | |
| Nivel sunet unitate interioara (sound pressure level ) | dB(A) | 47/43/40 | 50/47.5/44.5/39 | 51/48.5/46/38 | 53/50.4/40 | |
| Nivel sunet unitate interioara HI (sound power level ) | dB(A) | 57 | 63 | 65 | 65 | |
| Dimensiuni nete (W x Dx H)(caseta) | mm | 840x840x205 | 830x830x245 | 830x830x287 | 830x830x287 | |
| Dimensiuni nete (W x Dx H)(panel) | mm | 950x950x55 | 950x950x55 | 950x950x55 | 950x950x55 | |
| Unitate interioara | Greutate Neta/Bruta (caseta) | kg | 24.1/27.9 | 29.5/33.5 | 29.3/33.5 | 29.7/33.4 |
| Greutate Neta/Bruta (panel) | kg | 5/8 | 6/9 | 6/9 | 6/9 | |
| Diametru teava condens | mm | ODΦ32mm | ODΦ25mm | ODΦ25mm | ODΦ32mm | |
| Interval temperatura de pe telecomanda | ℃ | 17-30 | 16-30 | 16-30 | 17-30 | |
| Compresor | Tip | ROTARY | ROTARY | ROTARY | ROTARY | |
| Brand | GMCC Toshiba | GMCC Toshiba | GMCC Toshiba | GMCC Toshiba | ||
| Debit aer unitatea exterioara | 2700 | 4000 | 4000 | 7500 | ||
| Nivel sunet unitate exterioara (sound pressure level ) | dB(A) | 62 | 65 | 66 | 66 | |
| Nivel sunet unitate exterioara (sound power level ) | dB(A) | 67 | 70 | 71 | 74 | |
| Dimensiuni(WxDxH) | mm | 845x363x702 | 946x410x810 | 946x410x810 | 952x415x1333 | |
| Unitatea exterioara | Ambalaj(WxDxH) | mm | 965x395x765 | 1090x500x875 | 1090x500x885 | 1095x495x1480 |
| Greutate Neta/Bruta | Kg | 49.4/52.8 | 67/71.5 | 71/75 | 106.7/119.9 | |
| Refrigerant | Tip | R32 | R32 | R32 | R32 | |
| Cantitate | Kg | 1.50 | 2.40 | 2.80 | 3.00 | |
| Presiune proiectata | MPa | 4.2/1.5 | 4.3/1.7 | 4.3/1.7 | 4.3/1.7 | |
| Lichid/ Gaz | mm(inch) | Φ9.52/Φ15.9( 3/8 ; 5/8) | Φ9.52/Φ15.9( 3/8 ; 5/8) | Φ9.52/Φ15.9( 3/8 ; 5/8) | Φ9.52/Φ15.9( 3/8 ; 5/8) | |
| Traseu frigorific | Lungime maxima | m | 20 | 30 | 30 | 30 |
| Inaltime maxima | m | 10 | 10 | 10 | 10 | |
| Tempertura ambient unitate exterioara | Racire | ℃ | -15～50 | -15～50 | -15～50 | -15～50 |
| Incalzire | ℃ | -15～24 | -15～24 | -15～24 | -15～24 |
Download
